The Geberit CleanFloor30, when integrated with the Duofix installation frame for showers, represents a fully engineered, pre-coordinated modular system specifically optimised for floor-even shower installations.

This system utilises the globally trusted Duofix frame technology, renowned for its application in wall-hung sanitary modules, ensuring reliable installation, high structural stability, and sustained long-term operational performance, which is essential for demanding construction environments.



SYSTEM COMPONENTS

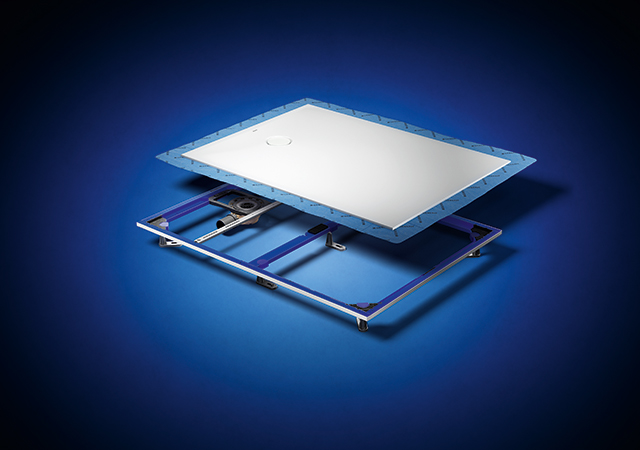

The system is defined by three precisely matched components, designed to maximise efficiency and minimise site complexity: the CleanFloor30 shower surface, the Duofix installation frame for showers, and the necessary installation set.

This strict component coordination significantly reduces the number of on-site installation steps, mitigates potential conflicts at interfaces with other trades (for example waterproofing and tiling), and completely eliminates the need for additional parts.



INSTALLATION AND HANDLING

The installation methodology leverages the proven stabilisation principles of Duofix technology, expertly adapted for horizontal, floor-level integration. The system incorporates an integrated central point of contact, facilitating rapid and precise planar alignment vital for stability. Crucially, a factory-applied sealing fleece is included, ensuring secure continuity in the waterproofing layer. To streamline post-installation adjustments, all height and level adjustment points are vertically accessible from above. The design also facilitates fast and reliable positioning of the trap, contributing to reduced on-site coordination effort and enhancing overall installation safety.



STRUCTURAL AND DRAINAGE PERFORMANCE

The Geberit system delivers robust structural integrity, featuring a load-bearing capacity rated up to 300 kg. This performance level exceeds prevailing industry standards for integrated shower trays and associated drainage fittings, providing confidence in its long-term durability. The system maintains high dimensional stability throughout the installation and operational lifecycle.

Hydraulically, the shower surface geometry and the trap fitting are optimised for peak efficiency. This design facilitates fast and reliable drainage, effectively managing high water flow rates typical in power shower applications. Contamination control is managed via an integrated comb insert that acts as a coarse particulate filter, effectively protecting the drainage system from blockages.



FLEXIBILITY AND PROJECT COMPATIBILITY

The Duofix frame offers significant configurational flexibility, including a 180-degree rotational capability to adapt to various architectural constraints and pipe layouts. The frame is engineered for compatibility not only with the CleanFloor30 mineral composite surfaces but also with steel shower trays. Furthermore, the system is suitable for deployment in both floor-even and conventional surface-mounted installation profiles, offering versatility for different project requirements.



CLEANFLOOR30 SHOWER SURFACE MATERIAL

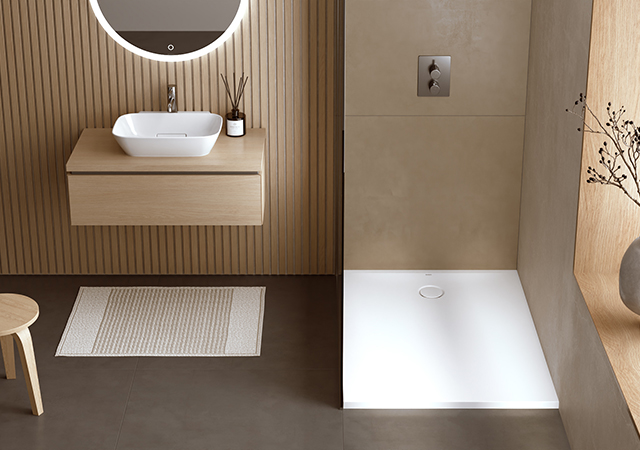

The CleanFloor30 shower surface is fabricated from a high-quality mineral composite. It features a smooth, dirt-repellent surface finish that ensures easy cleaning and low maintenance. Its slip resistance is certified to Class B, meeting safety standards. Tactilely, the surface offers a velvety and pleasantly warm feel. Aesthetically, it is available in multiple dimensions and in contemporary colours including matt white, grey, and graphite.



KEY BENEFITS

The integration of the Geberit CleanFloor30 and Duofix system yields substantial operational advantages: fewer installation steps, reduced coordination effort between trades, maximum system reliability through pre-matched components, high load capacity and efficient drainage performance, and the provision of an elegant, easy-to-maintain design solution.

Geberit provides a high-reliability system solution that meets the quality and performance expectations of the construction sector.

• Geberit CleanFloor30 and Duofix, a coordinated solution
